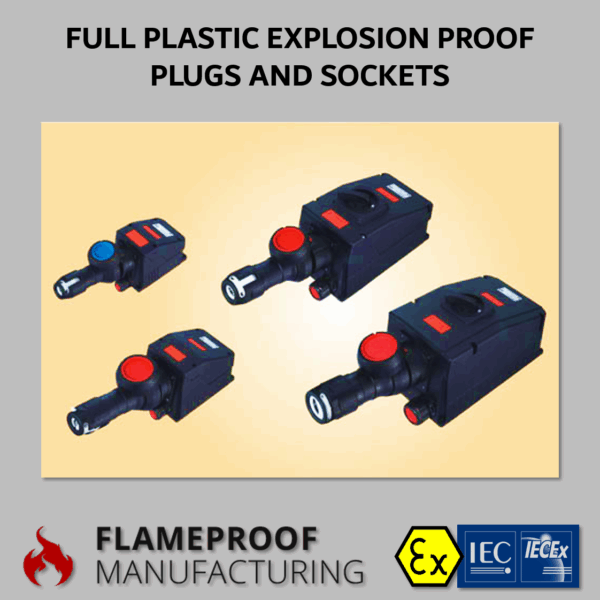

These flameproof and explosion proof plugs and sockets and boast: self-cleaning inserting sleeves, low transmission resistance, protective covers ensuring high degree of protection, small force required to insert or pull out.
Specs:
- Ex mark: Ex Ⅱ2GD Ex de ⅡC T6 Gb Ex tD A21 T80℃ Ta≤40℃ Ex Ⅱ2GD Ex de ⅡC T5 Gb Ex tD A21 T95oC Ta≤55oC
- Intended use: Can be used in Zone 1 and Zone 2, Zone 21and Zone 22
- Ambient temperature: -40oC to +55oC
- Degree of protection: IP66
- Frequency: 50/60Hz
- Rated voltage: Up to 690V
- Rated current: Maximum 63A
- Switch capacity: AC3 up to 690V/63
- Cable entry: Wall type socket 1×M50 Φ22 – 35mm
- Cable outside diameter Φ15 – 35mm
- Weight: Wall type socket: 8.1kg
Order:
Contact FLAMEPROOF MANUFACTURING for further information:
questions@flameproofmanufacturing.com +27 11 918 7810
