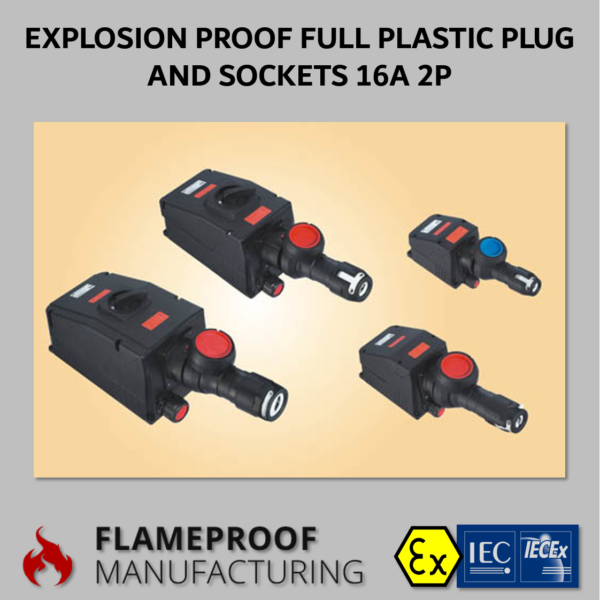

These flameproof and explosion proof plugs and sockets can be used in explosive gas atmospheres where the location of local power supply control and electrical installation and mobile machinery often need to be moved and transformed.
Specs:
- Ex mark: Ex ed ⅡCT6 DIP A21 TA，T6
- Intended use: Can be used in Zone 1 and Zone 2, Zone 21 and Zone22
- Ambient temperature: -40oC to + 40oC
- Degree of protection: IP66
- Rated voltage: up to 50V
- Rated current: Maximum 16A
- Switch capacity: AC3 16A DC-21A 16A
- Cable entry: Wall type socket (Standard configure)1×M25 Φ8 -17mm
- Plug: Cable outside diameter Φ8 -18.5mm
- Cable outside diameter: Φ8 – 18.5mm
Order:
Contact FLAMEPROOF MANUFACTURING for further information:
questions@flameproofmanufacturing.com +27 11 918 7810
