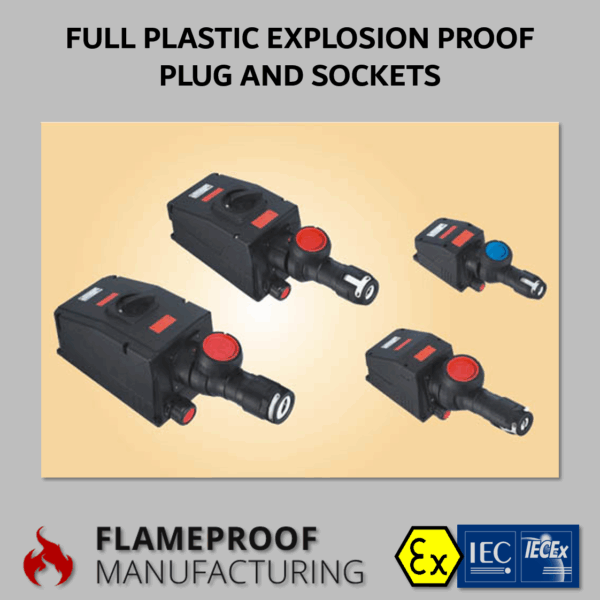

These flameproof and explosion proof plugs and sockets can be used in explosive gas atmospheres where the location of local power supply control and electrical installation and mobile machinery often need to be moved and transformed.
Specs:
- Ex mark: Ex Ⅱ2GD Ex de ⅡC T6 Gb Ex tD A21 T80oC Ta≤ 45oC Ex Ⅱ2GD Ex de ⅡC T5 Gb Ex tD A21 T95oC Ta≤ 55oC
- Intended use: Can be used in Zone 1 and Zone 2, Zone 21 and Zone 22
- Ambient temperature: -40oC to +55oC
- Degree of protection: IP66
- Frequency: 50/60Hz
- Rated voltage: up to 50V
- Rated current: Maximum 16A
- Switch capacity: AC3 16A DC-21A 16A
- Conformity to: CE
- Cable entry: Wall type socket (Standard configure)1×25m
- Plug: Cable outside diameterΦ8 – 18.5mm
- Cable outside diameter: Φ8 – 18.5mm
Order:
Contact FLAMEPROOF MANUFACTURING for further information:
questions@flameproofmanufacturing.com +27 11 918 7810
